Welcome: Chuzhou kexin Machinery Technology Co., LTD
Language: Chinese ∷  English

Vesicle

  • Ground rail door body foaming line manual bubbling manipulator

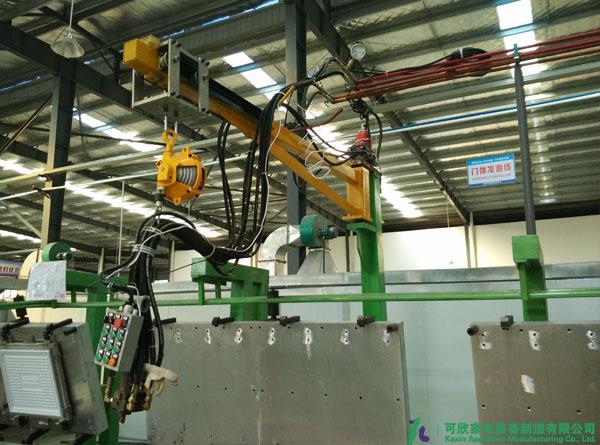

Ground rail door body foaming line manual bubbling manipulator

Ground rail door body foaming line manual bubbling manipulator

  • Product description: Ground rail door body foaming line manual bubbling manipulator
  • INQUIRY

Workstations:40

Pallet size:2200*850

Pitch:2500mm

Height of operating table:650±20mm

The pallet fixture closure height:245mm±0.2

Main drive chain model:M315-P-250  , scraping belt δ10/45Mn

Orbital arc diameter:9000mm

Production takt of design:10~~12s   ,    curing time is less than 240s

Linear speed control range:7.5~ 15m/min, stepless speed adjustment

Curing/operation station:30/10

Closing time:≤7s

Upper/lower mold heating:Heating, chiller cooling, fan 11KW. The cooling/heating exchanger is in series.
8 rows *2 sets
Temperature of drying tunnel:75C°±10C°

Heating time:90 minutes     ,  the environment temperature is 5 ℃

Dragging motor:SEW reducer /11KW  , domestic explosion-proof variable frequency motor.

Drive station/chain refueling:The automatic tanker controls the refueling time.
